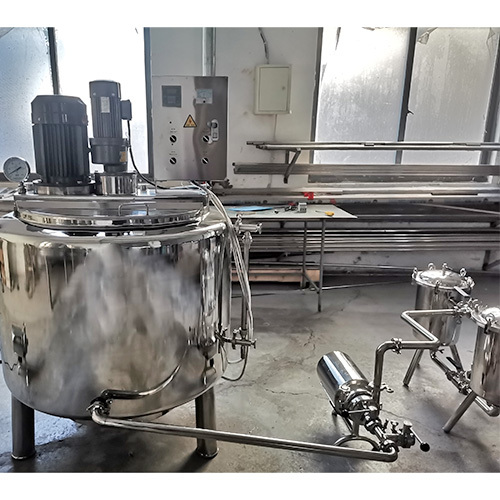

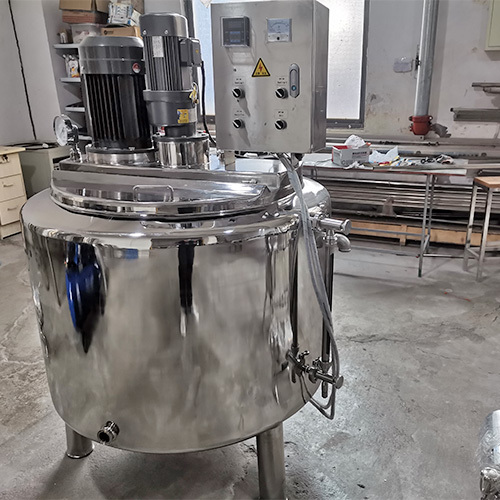

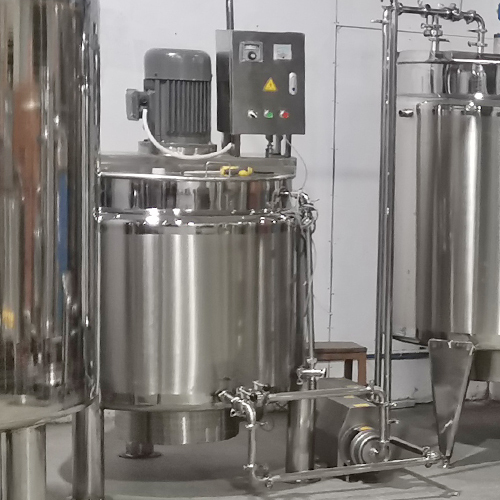

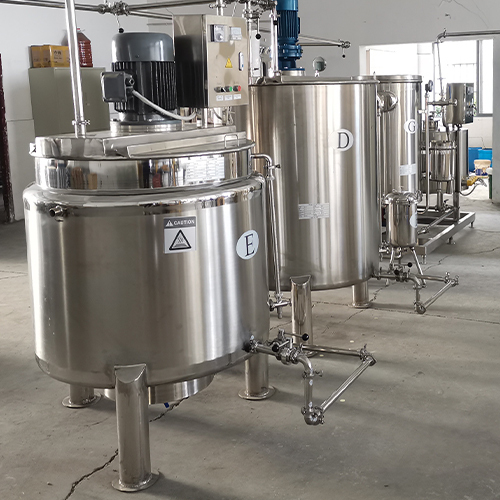

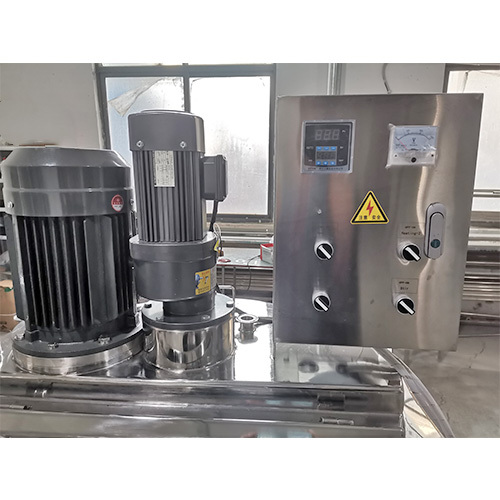

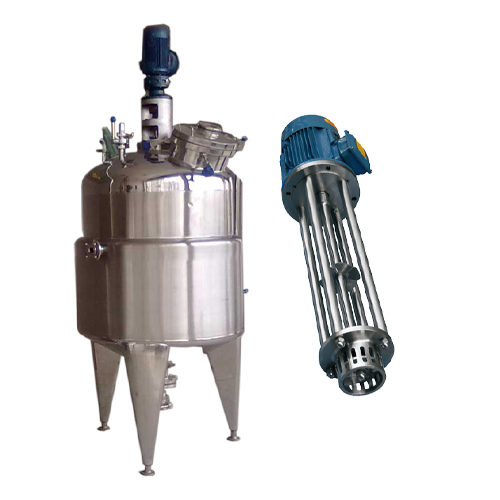

The electrical heating emulsifying tank, high shear tank, homogenization tank utilizes high shear technology to efficiently mix incompatible liquids and disperse particles, enhancing product quality and stability, and is equipped with temperature control systems for optimal processing.
-Emulsification tanks mix materials at high speeds using shear force from an emulsifier and agitator.
- They create tiny droplets in incompatible liquids, achieving uniform distribution of particles.
- Improved mixing quality leads to enhanced production efficiency and product stability.
- These tanks are also known as homogenization tanks.

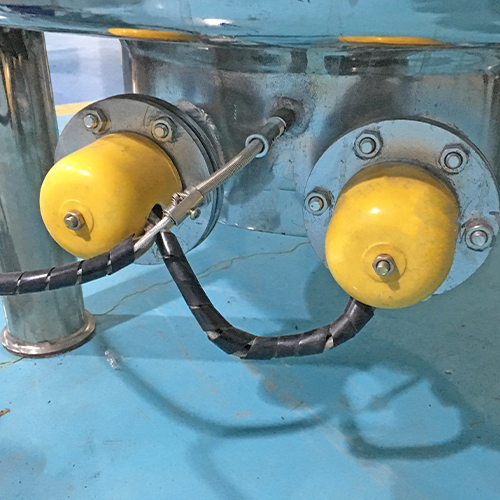

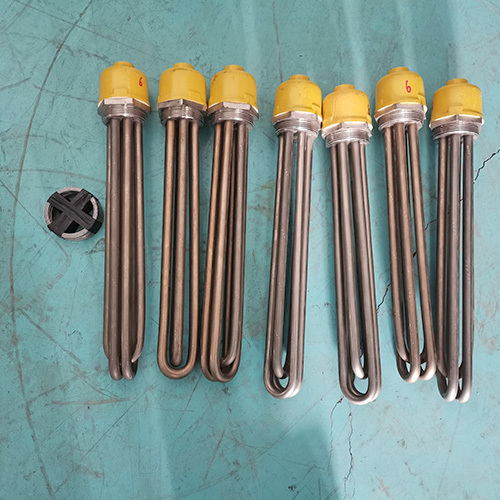

- Equipped with heating, cooling, and insulation systems to regulate material temperatures during processing.
|
Volume |
100L |
200L |
300L |
500L |
1000L |
|
Inner layer |
δ=2.5mm |
δ=2.5mm |
δ=2.5mm |
δ=3.0mm |
δ=3.0mm |
|
Middle layer |
δ=2.0mm |
δ=2.0mm |
δ=2.0mm |
δ=2.5mm |
δ=2.5mm |
|
Outer layer |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
|
Inner tank |
Φ550*500mm |
Φ650*600mm |
Φ800*600mm |
Φ800*800mm |
Φ1000*1220mm |
|
Heating Power |
12 kw |
12 kw |
18 kw |
18 kw |
24 kw |
|
Motor Power |
0.75 kw 36 rpm |
0.75 kw 36 rpm |
0.75 kw 36 rpm |
1.55 kw 36 rpm |
1.55 kw 36 rpm |
|
Emulsifier |
4 KW 2800rpm |
4 KW 2800rpm |
4 KW 2800rpm |
7.5 KW 2800rpm |
7.5 KW 2800rpm |
|
Insulation layer |
Polyurethane insulation |
||||
|
Supply Power |
3-phase 4-wires 380V 50Hz |
||||
|
Mixing Method |

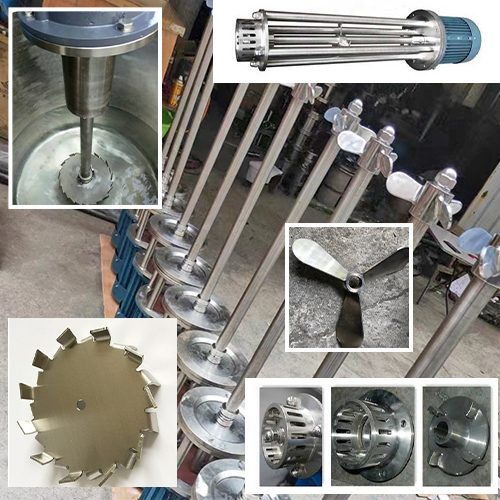

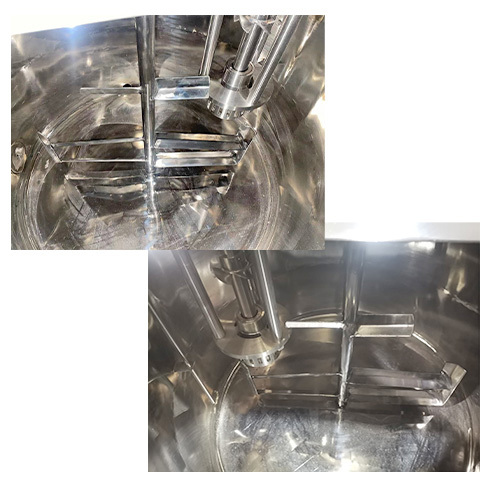

Frame-type stirring, paddle-type, dispersion disk, emulsifier |
||||
|
Pressure |
≤0.09Mpa |
||||
|
Temperature |
≤160℃ |
||||
|
Annex |

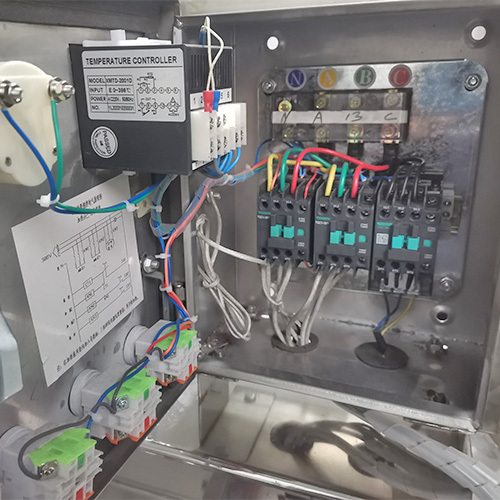

Liquid level meter, Clean ball, Oil seal, control cabinet |
||||
