Volume |
100L |
200L |
300L |
500L |
1000L |
|
Inner layer |
δ=2.5mm |
δ=2.5mm |
δ=2.5mm |
δ=3.0mm |
δ=3.0mm |
|
Middle layer |
δ=2.0mm |
δ=2.0mm |
δ=2.0mm |
δ=2.5mm |
δ=2.5mm |
|
Outer layer |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
δ=1.5mm |
|
Inner tank |
Φ550*500mm |
Φ650*600mm |
Φ800*600mm |
Φ800*800mm |
Φ1000*1220mm |
|

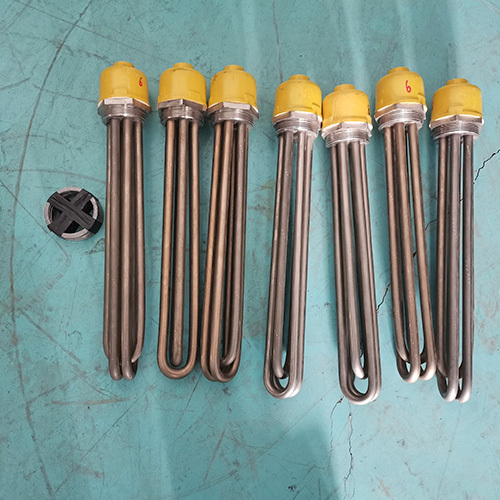

Heating Power |
12 kw |
12 kw |
18 kw |
18 kw |
24 kw |
|

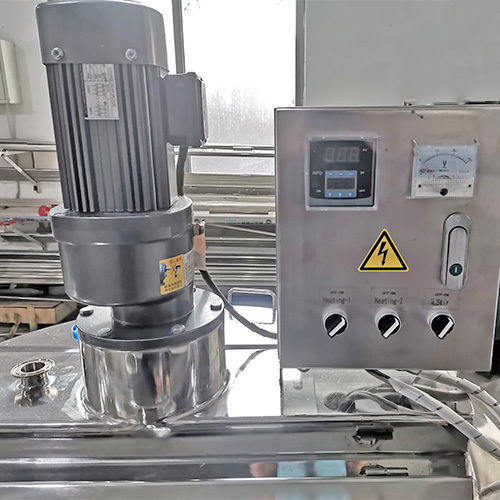

Motor Power |
0.75 kw 36 rpm |
0.75 kw 36 rpm |
0.75 kw 36 rpm |
1.55 kw 36 rpm |
1.55 kw 36 rpm |
|
Insulation layer |
Polyurethane insulation |
||||
|
Supply Power |
3-phase 4-wires 380V 50Hz |
||||
|

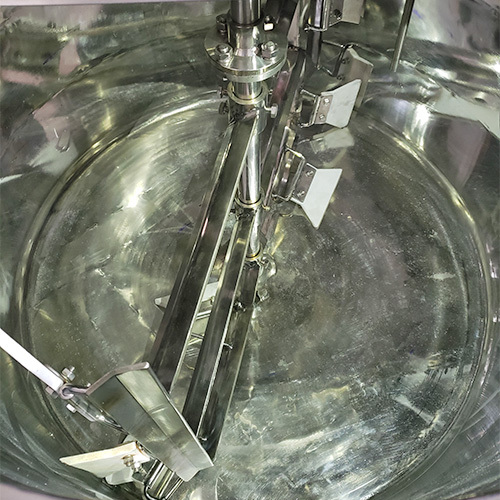

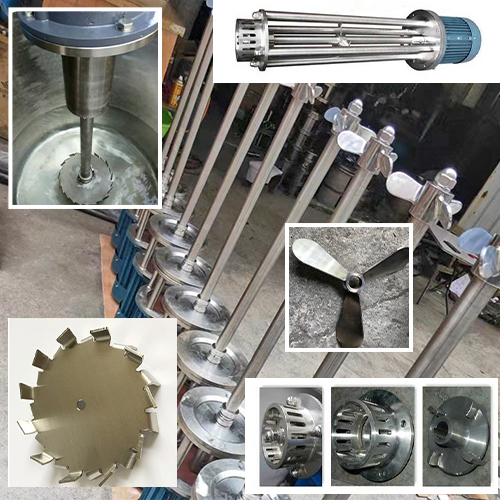

Mixing Method |
Frame-type stirring, paddle-type, dispersion disk, emulsifier |
||||
|
Pressure |
≤0.09Mpa |
||||
|
Temperature |
≤160℃ |
||||
|
Annex |
Liquid level meter, Clean ball, Oil seal, control cabinet |
||||
